CE Certified X-ray Counting Machine with 50-80KV Power and 3 Years Warranty for SMD Material Reel

Name: CE Certified Xray Counting Machine with 5080KV Power and 3 Years Warranty for SMD Material Reel
Brand: wisdomshow
Price: 76 USD

Wholesale CE Certified X-ray Counting Machine with 50-80KV Power and 3 Years Warranty for SMD Material Reel from china suppliers

Place of Origin : Guangdong, China

Brand Name : wisdomshow

MOQ : 1

Price : $76,000

Weight : 2500 kg

Power : 50-80KV

Voltage : 220 V

Tube voltage : 50-80KV

Tube current : 100-800 UA

Maximum tray size : 17 inches

Pixel matrix : 3072*3072 pixels

Image size : 430*430 mm

Detector size : 470*470*35 mm

Feeding method : Cart-type automatic induction feeding

Total power : 2400W

Equipment size : 4500*1200*2118 mm

Radiation safety : <1μSV/H

Load-bearing platform : 10KG

Maximum tray thickness : 80mm

Contact Now

DS-3200 THE ALGORITHM SOFTWARE PRINCIPLE AND INDEPENDENT RESEARCH AND DEVELOPMENT!

JUST BUY IT!

CE Certified X-ray Counting Machine with 50-80KV Power and 3 Years Warranty for SMD Material Reel

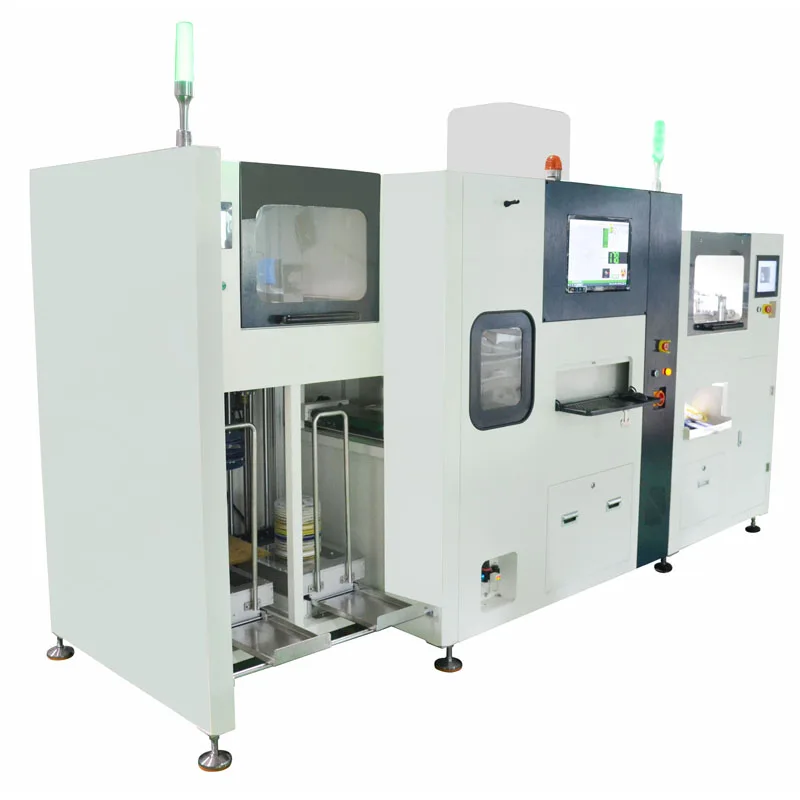

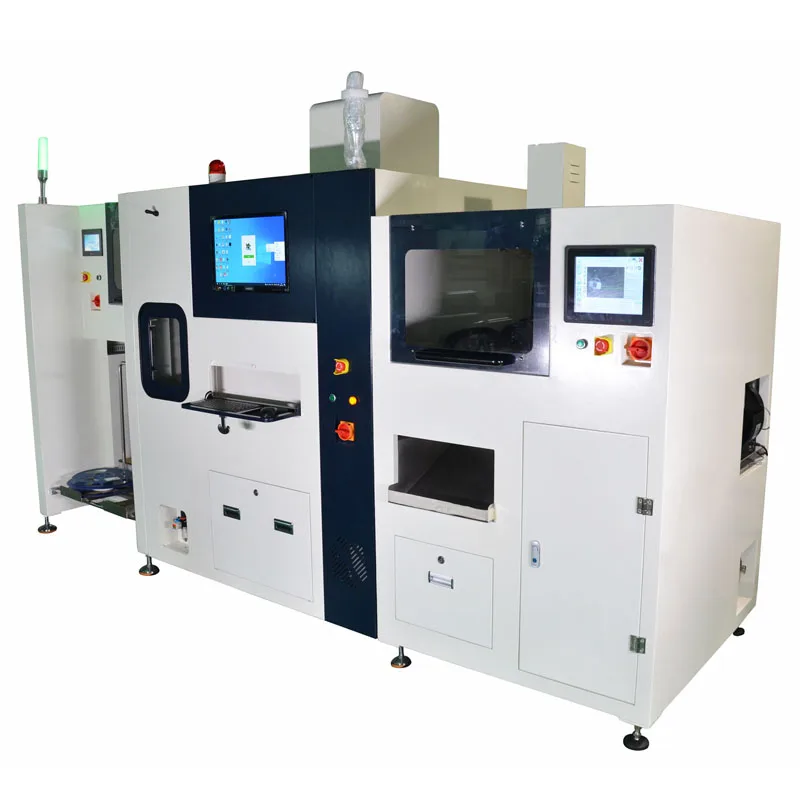

DS-3200 is an online type automatic counting machine, It is based on the X-Ray perspective principle and independent research and development. The algorithm software with AI function can quickly and accurately calculate the number of objects in the material tray. It also has the functions of MSE data upload and automatic printing of material labels. Automatic code scanning, labeling, automatic sorting functions, and can automatically load, unload, to achieve the function of improving work efficiency and saving labor.

Product features

1, With automatic feeding and blanking functions 2. Realize online detection without manual interference 3, High detection efficiency, can replace 10-12 people capacity 4, Can be linked to ERP/MES system 5, Improve the accuracy of warehouse storage materials 6, The counting accuracy is up to 99.99% 7, Automatic CCD visual scanning bar code, can print bar code or system 8, Software neuron algorithm, automatic image processing, obtain results 9, Use high density lead plate to ensure radiation leakage less than 1μSV/h

Equipment advantages 1.Significantly reduce the inventory time, eliminate redundant manpower, and can instead assist other personnel to take up or change the line. 2.The X-ray adopts a closed lighttube, which has a long life and is maintenance-free.

3.The device adopts a17-inch ultra-clear flat panel detector, which has fast imaging and no distortion. 4.On-line counting machine can greatly improve the situation of material shortage, material loss, material leakage, lack of material, etc., digitally manage the material warehouse, reduce material inventory costs, and improve the accuracy of material inventory. 4.There is no need to open the packaging bag to maintain the integrity of the material roll. 6.Really realize the industry 4.0 standard, intelligent, less human, and efficient. 7.automatic feeding, automatic ordering, automatic labeling, and automatic unloading. The entire process is completely automated without human intervention.

Return on investment The X-RAY spotting machine is the latest high-tech spotting technology on the market, which can meet the counting needs of various electronic components. The speed is more than 10 times that of the traditional spotting machine, and the accuracy is higher, and it is easy to be intelligent. Management can save at least 8-10 people, and the investment cost can be recovered in about 12 months.

Product Paramenters

model	DS-3200
X-ray source	Tube voltage	50-80KV
		Tube current	100-800UA<
		Cooling method of bare pipe	Air-cooled
Radiation safety	<1μSV/H
Flat panel detector	Detector category	Amorphous silicon
		Pixel matrix	3072*3072pixels
		Image size	430*430mm
		Detector size	47047035mm
Load-bearing platform	10KG
Detection size range	Maximum size of tray	17 inches
		Minimum size of tray	Unlimited
		Maximum thickness of tray	80mm
Bar code recognition	Automatic
Feeding method	Cart-type automatic induction feeding
Labeling method	CCD automatically recognizes the position of the tray label, and the robotic arm
Labeling method		automatically picks up the label and affixes it to the original label to cover the old label
Cutting method	Automatically put into the feeder
Equipment Specifications	Total power	2400W
		Equipment size	450012002118mm
		equipment weight	about 2500KG
		Supply voltage	220V50-60Hz

cooperative partner

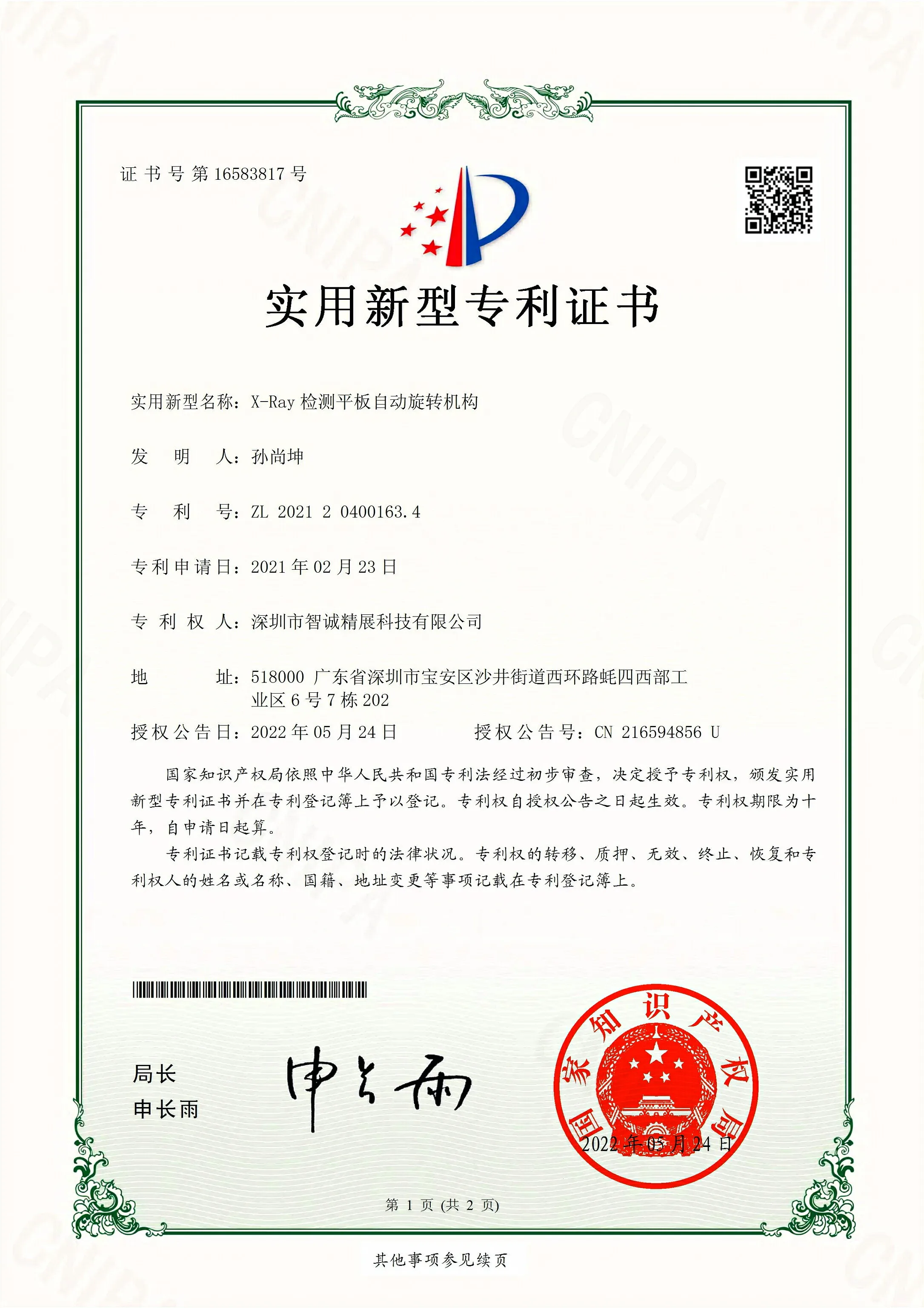

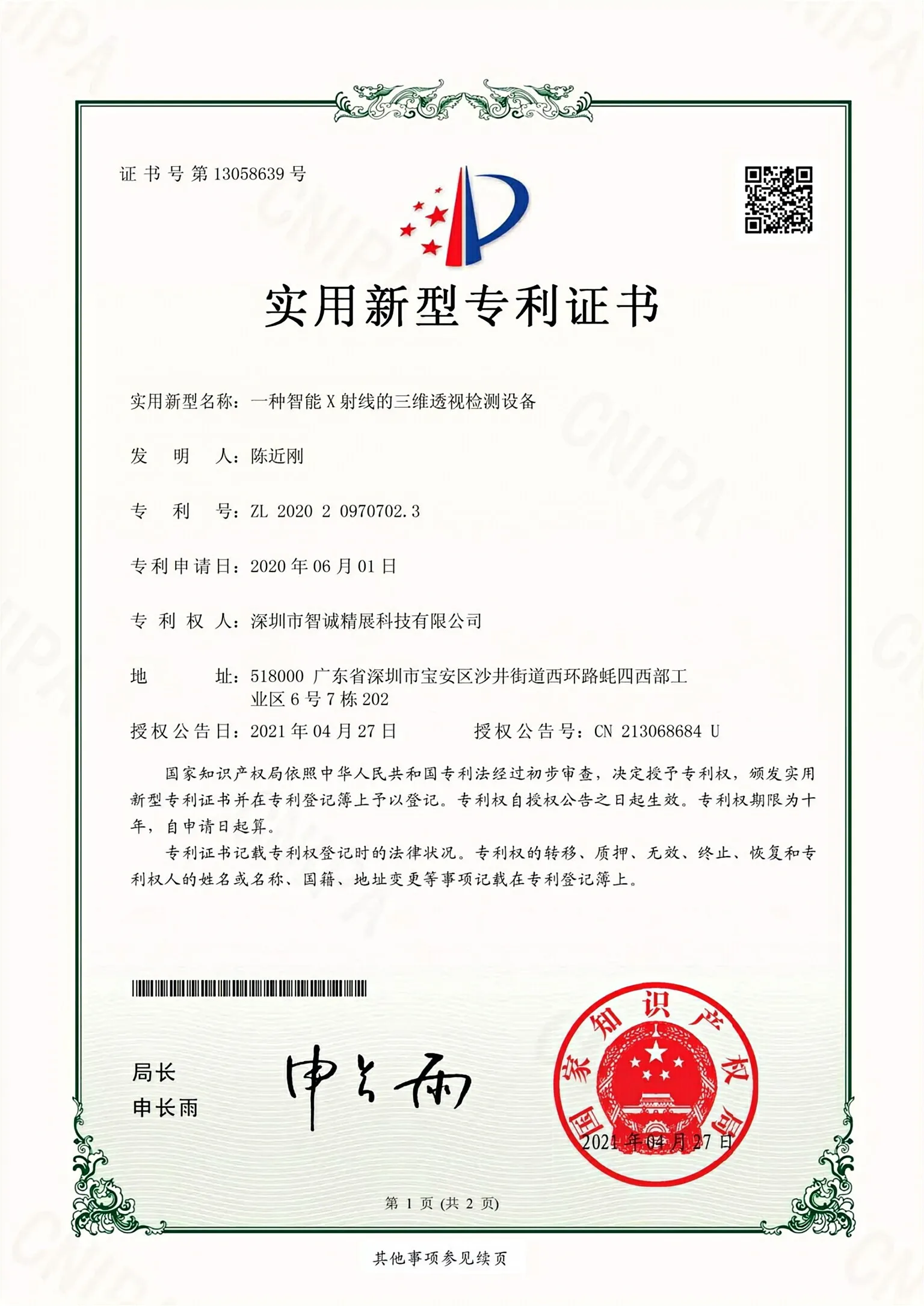

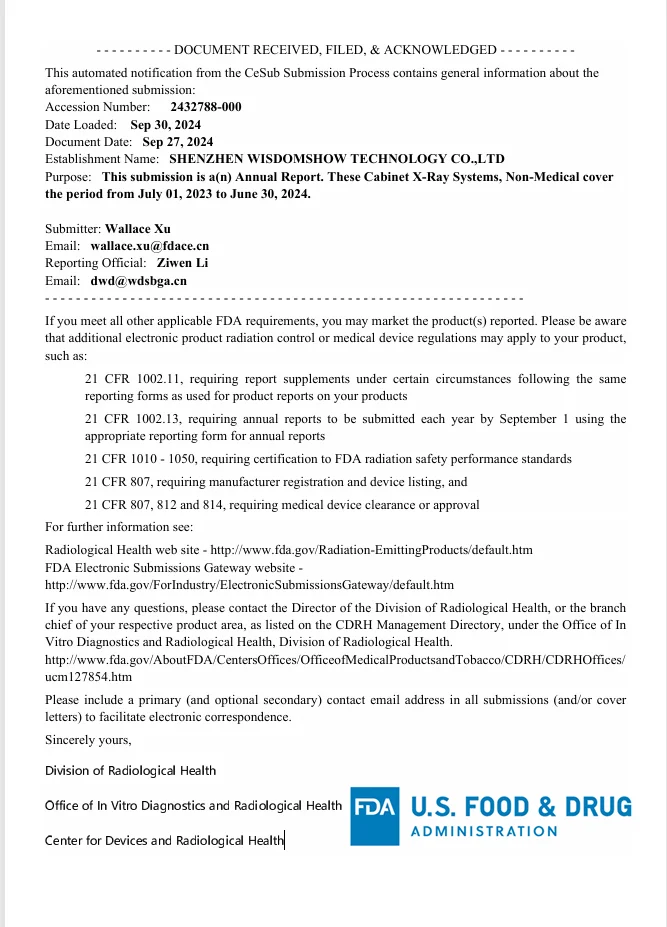

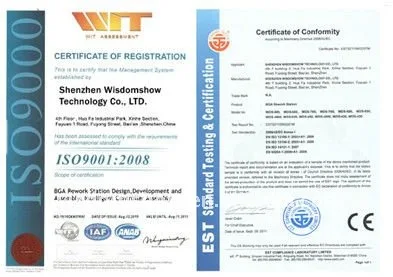

Qualification

Packing&Shipping

1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.

Company Information

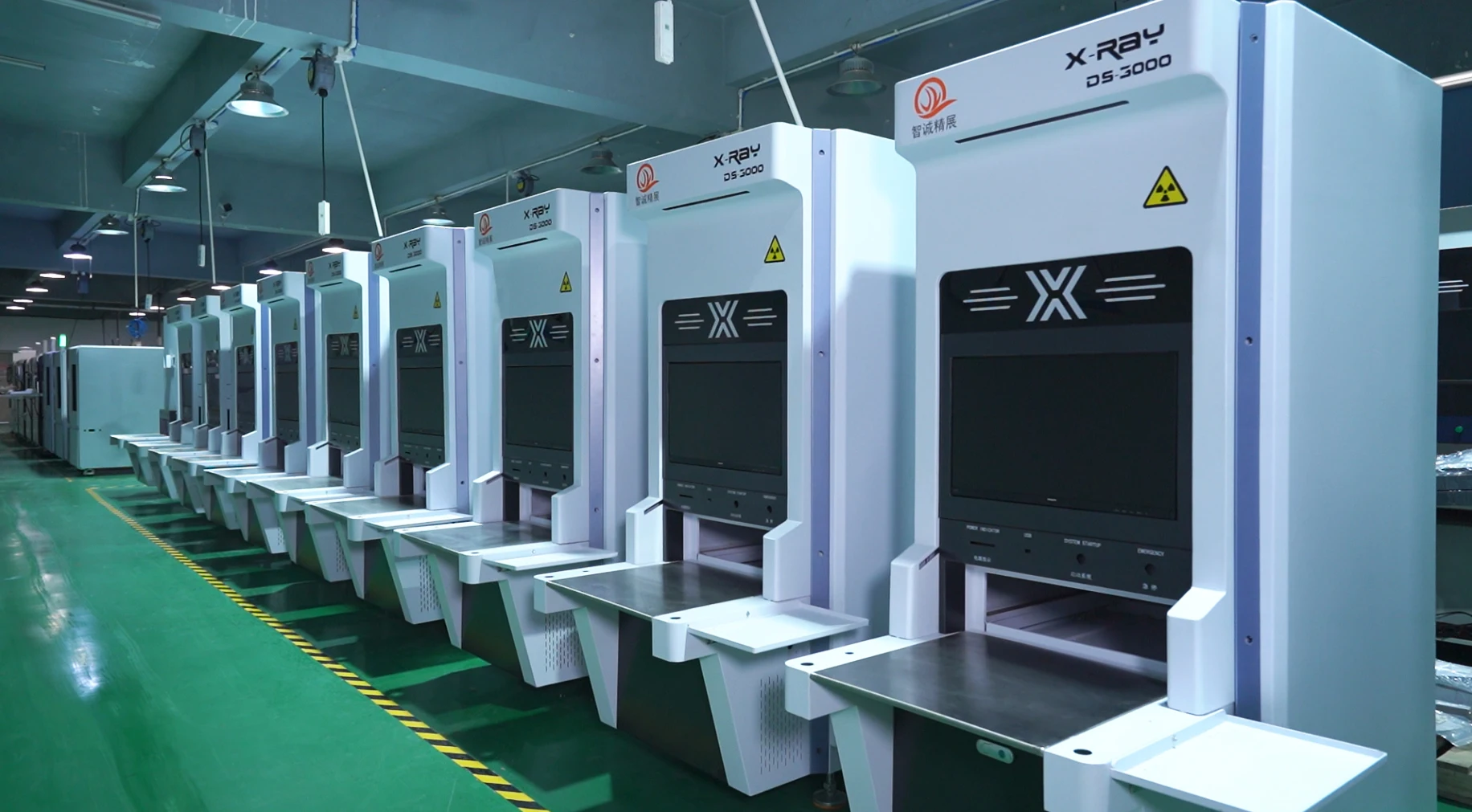

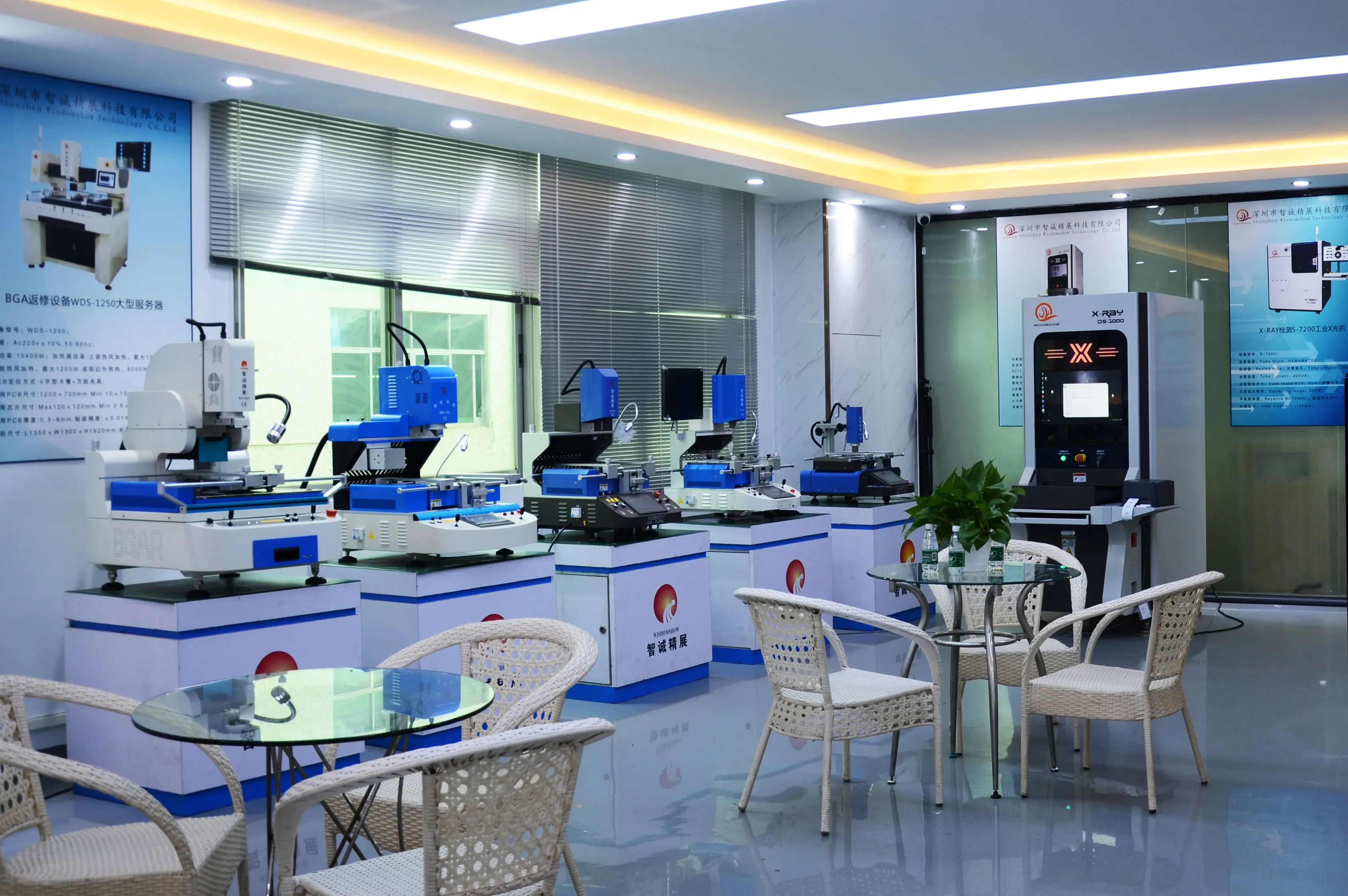

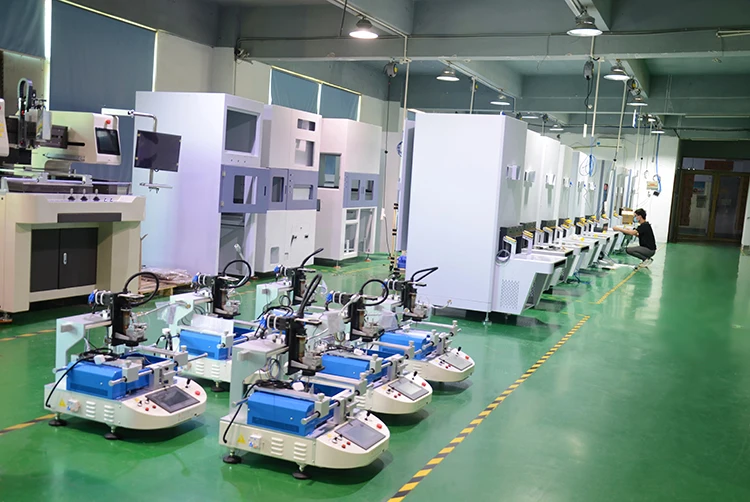

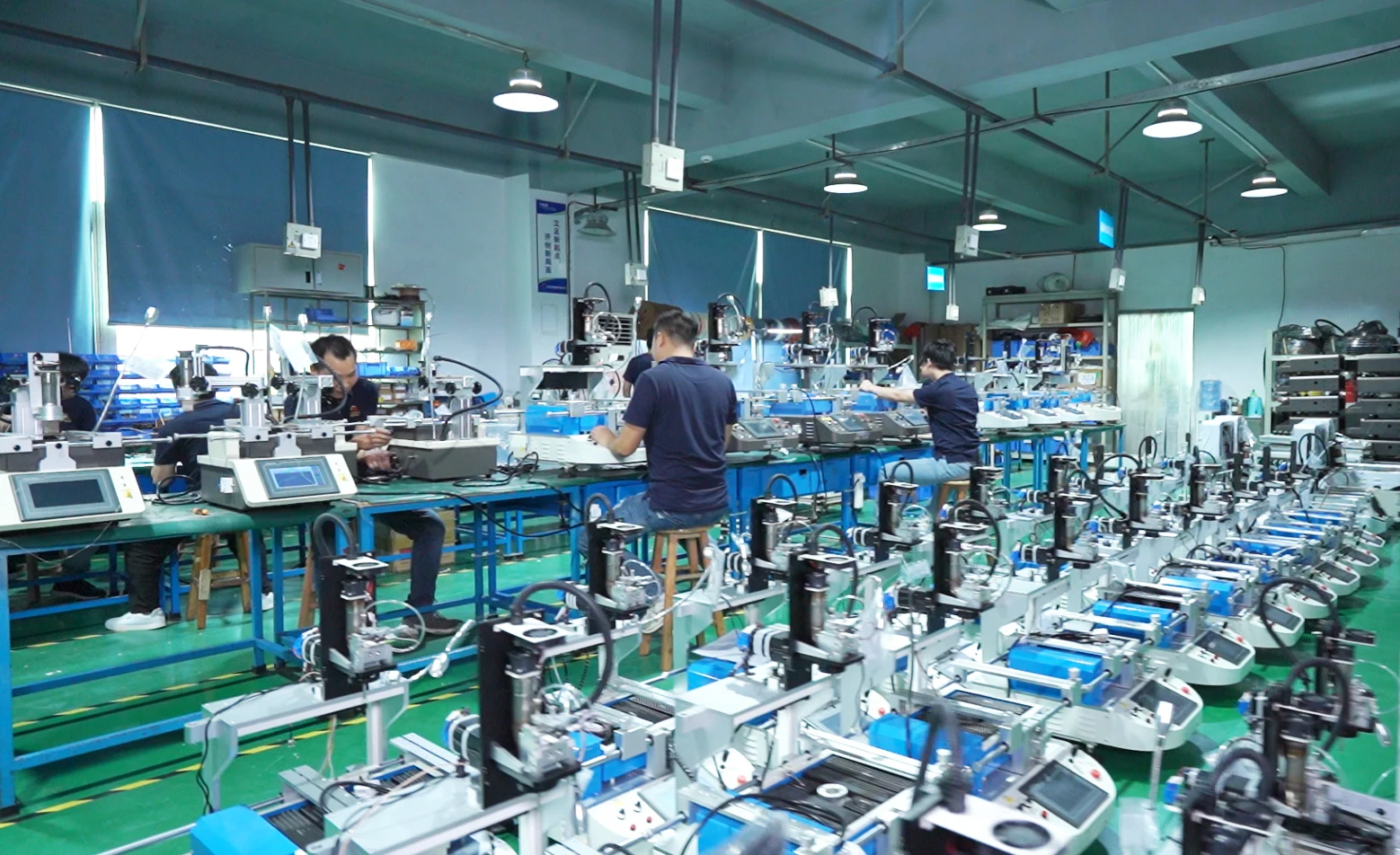

Shenzhen Wisdomshow Technology Co., Ltd. was founded in 2011 by a team of experienced engineers and sales experts. Specializing in BGA rework stations and X-RAY inspection equipment, the company has grown rapidly through continuous R&D and technological innovation. In 2015, it expanded into the X-RAY field, launching several advanced inspection systems.Our factory bases on Shenzhen Baoan, has about ten thousand square meters.

With ISO9001 and CE certifications, multiple patents, and strong customization capabilities, Wisdomshow serves clients across Asia, Europe, and North America. Its solutions are widely used in server motherboard repair, LED assembly, and smartphone production. Guided by the principles of professionalism, innovation, and integrity, the company continues to earn global trust and
recognition.

Our Advantages and Service

Contact:24 hours technical support by email or calling;
Warranty:one year free,but all the other relative cost should be on the buyer's account;
Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
Service:Friendly English User manual provided; Good and professional after-sales service;
Price:Give great discount to AGENCY to ensure agents profit.

Buyer Feedback

Our Customers' Voice:
1.Hi mate, your best price and high purity product is so competitive in my country , this let me make much profit , my customers
are really like it . cooperate with you is so wonderful ! thank you ! ---------Richard---Turkey
2.i have received my products , your packing is do discreet and perfect , it really amazed me .i will order more from you as
soonas possible. thanks a lot. -----------Robet--Australia
3.i have cooperated with you for many times , your product quality is so great , that is why i still buy the products from you.
thank you . ------------- Corentin ---Brazil

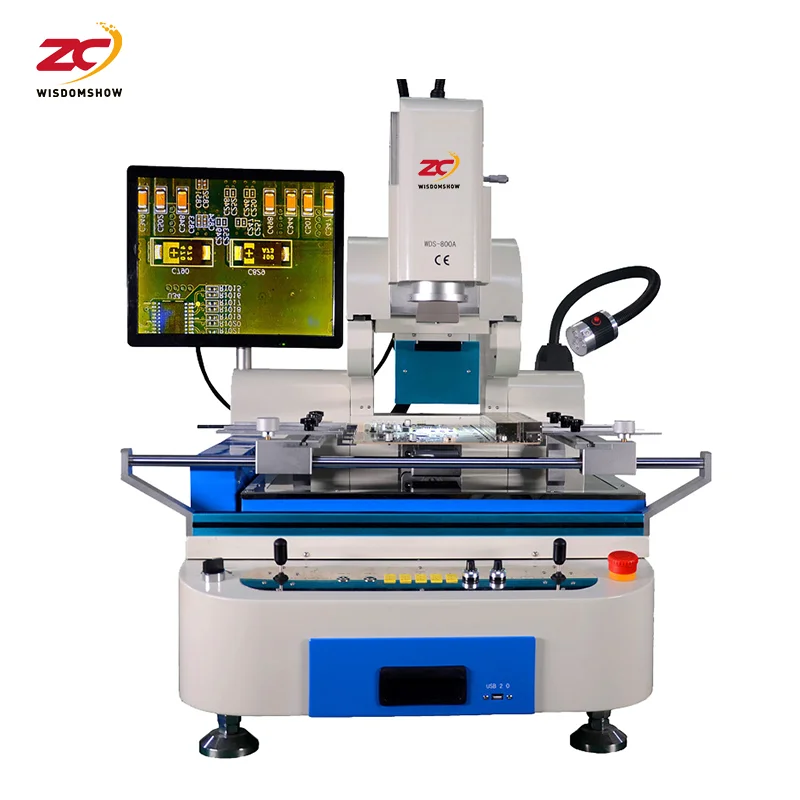

Relative Products

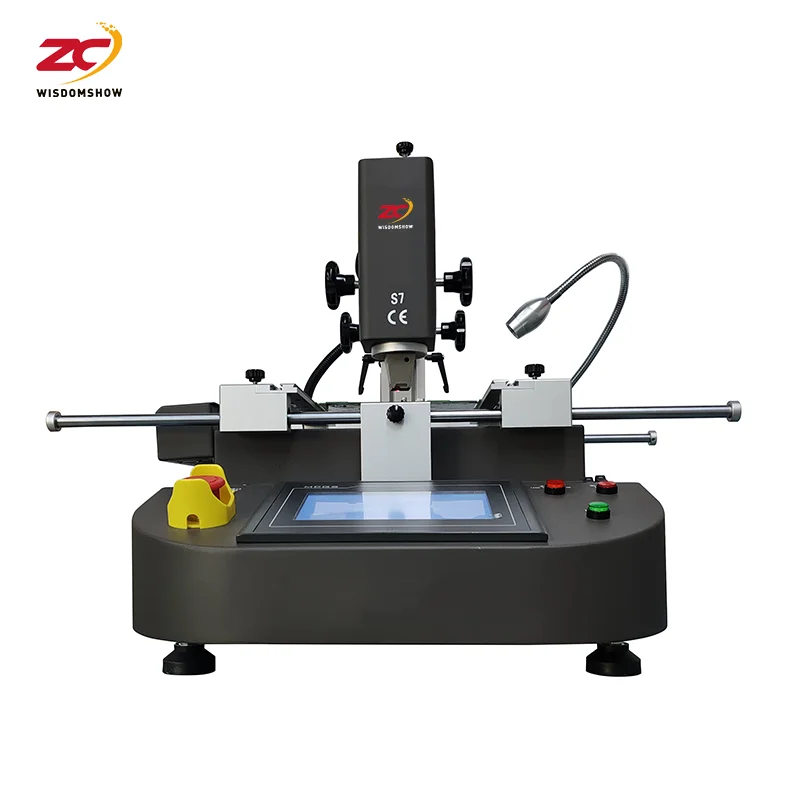

WDS-S7

WDS-620

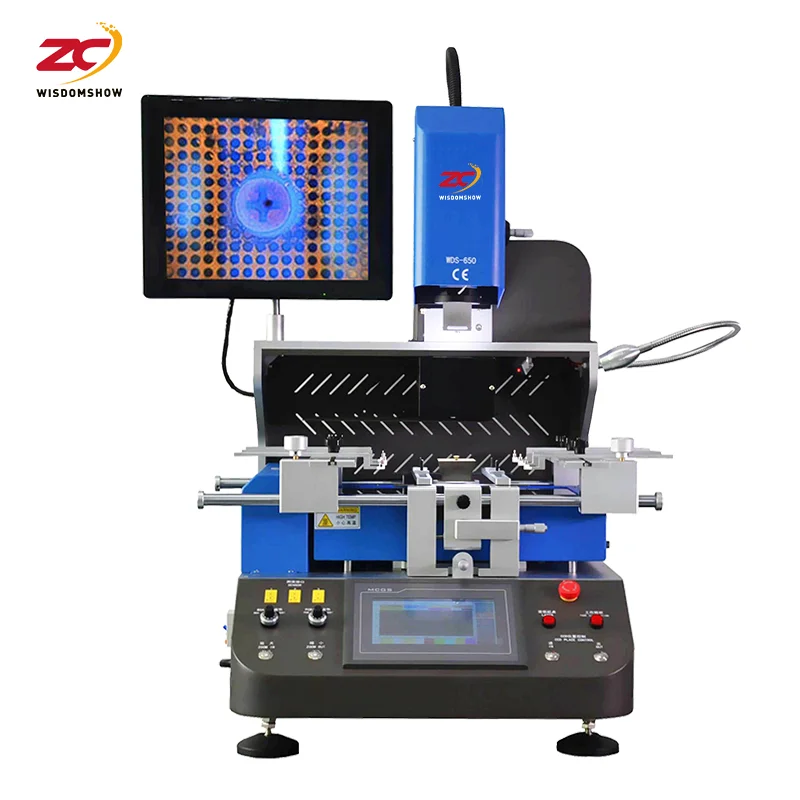

WDS-650

WDS-750

WDS-800A

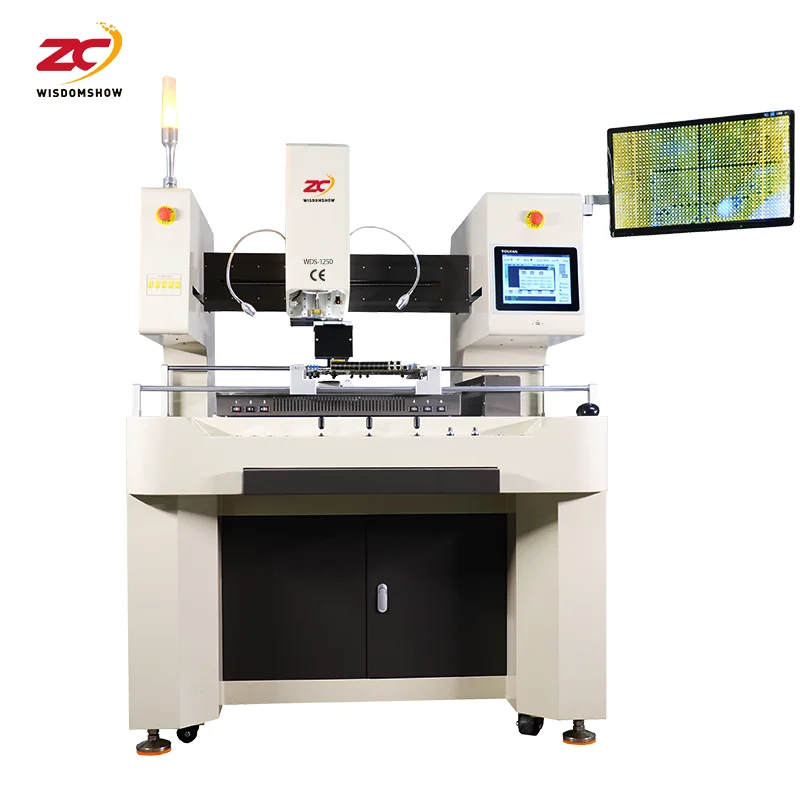

WDS-1250
